 | The side blowing furnace can be used for direct smelting of lead oxide/sulfide concentrate and lead-zinc sulfide ore as well as lead-bearing secondary material as lead paste from lead acid battery etc.. In copper metallurgy, material to side-blowing furnace varies from copper oxide ore, copper sulfide ore and copper-nickel sulfide concentrate to black copper, copper scrap, WEEE, electronic waste, zinc leaching residue, etc. The side blowing furnace has the advantages of less energy consumption, high utilization rate of oxygen and producing less off-gas amount with high SO2 concentration. |
| Siphon Port For draining the matte or crude lead to the chute, being a location with the worst work condition of the the whole furnace. Refractories need to withstand mechanical abrasion by the melts, chemical carrion by the slags, as well as thermal shock damages. GW-AL series products are suitable. |  | |
 | Gas Phase Region To withstand the mechanical impact of the rising gases, chemical corrosion, as well as damages by thermal shocks. Recommend to use GW-DL series products. | |

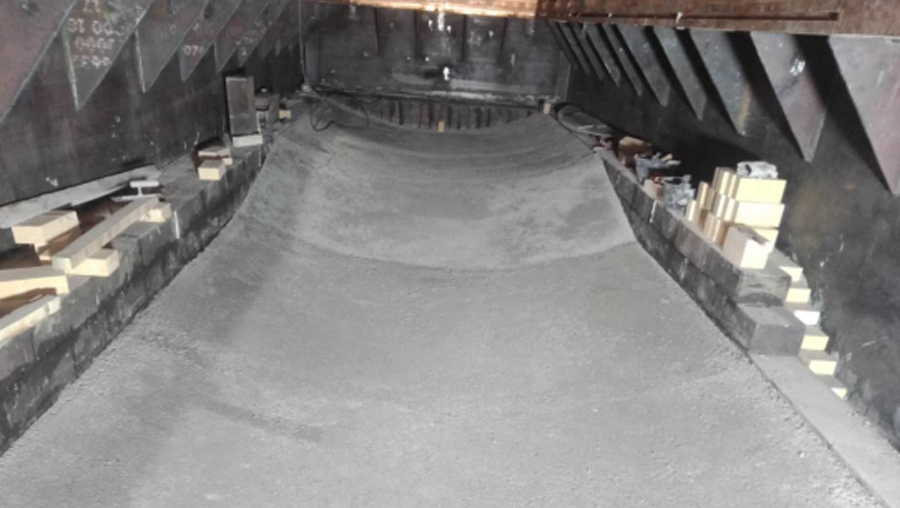

| Hearth and Bottom Storage region for matte or crude lead, so need to with-stand mechanical abrasion and chemical corrosion. Recommend to use GW-CL series products. |  |
