Product Description

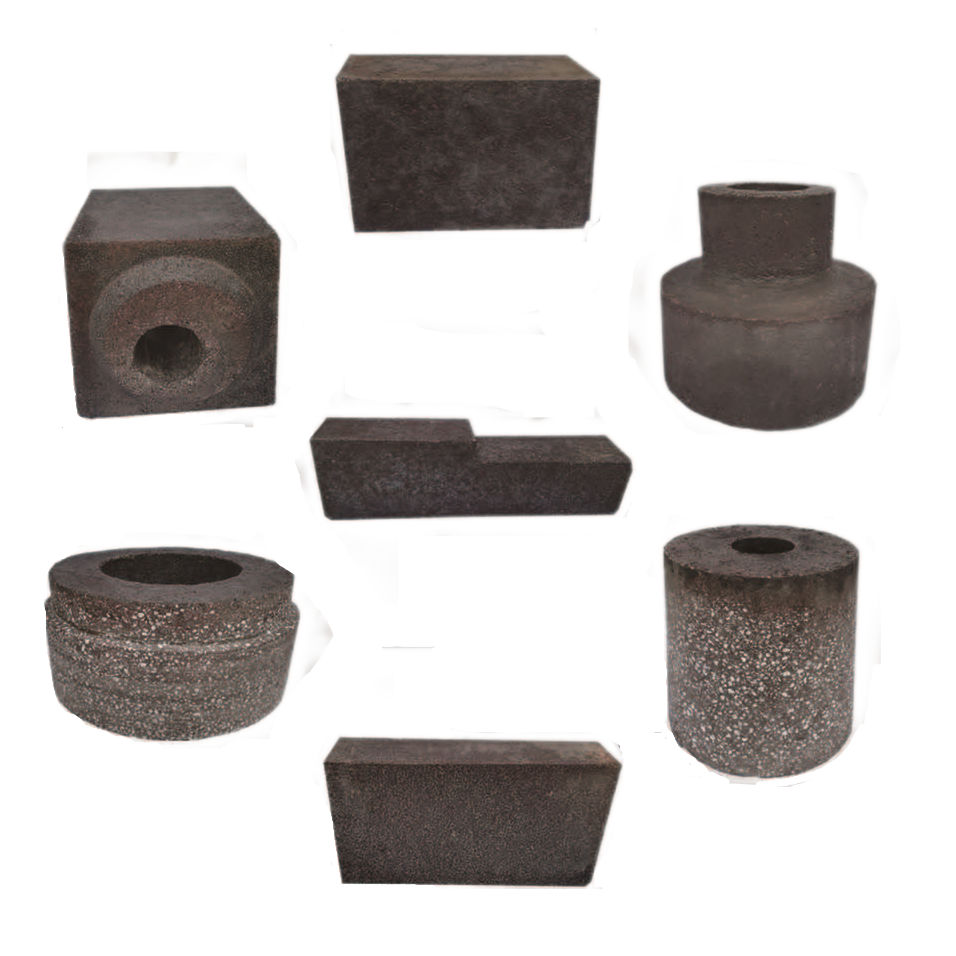

Main components and forming; High percentage chromium oxides and fused aluminum oxide, high temperature sintered with addition of special binders.
GWGJ-1 is mainly used on gasification furnaces and gas generators in petrochemical industry.
GWGJ-2 is suitable for synthetic ammonia gasification furnace and the bottom of steel heating furnace.
GWGJ-3 and GWGJ-4 are suitable for special locations of Dexgo and coal slurry gasification furnaces.
Model | GWGJ-1 | GWGJ-2 | GWGJ-3 | GWGJ-4 |
Cold crushing Strength,Mpa ≥ | 100 | 90 | 80 | 100 |
Bluk Density ,g/m³≥ | 3.1 | 3.0 | 3.0 | 3.8 |
Apparent Porosity,%≤ | 17 | 17 | 18 | 13 |
Fire Resistance℃≥ | 1900 | 1800 | 1790 | 1850 |
Reheat Linear Change（1500°Cx3h）% | -0.2 | -0.2 | -0.3 | +0.2 |
Refractoriness under load℃≥ | 1700 | 1700 | 1680 | 1700 |
Thermal Expansion Coefficient（1300℃x10ˉ⁶/℃） | 8.6 | 8.3 | 7.6 | 6.8 |
Thermal conductivity, （1200℃）W/m.k≤ | 2 | 3 | 2 | 4 |
1250℃ Modulus of Rupture Mpa≥ | 9.5 | 8.7 | 9.1 | 8.9 |

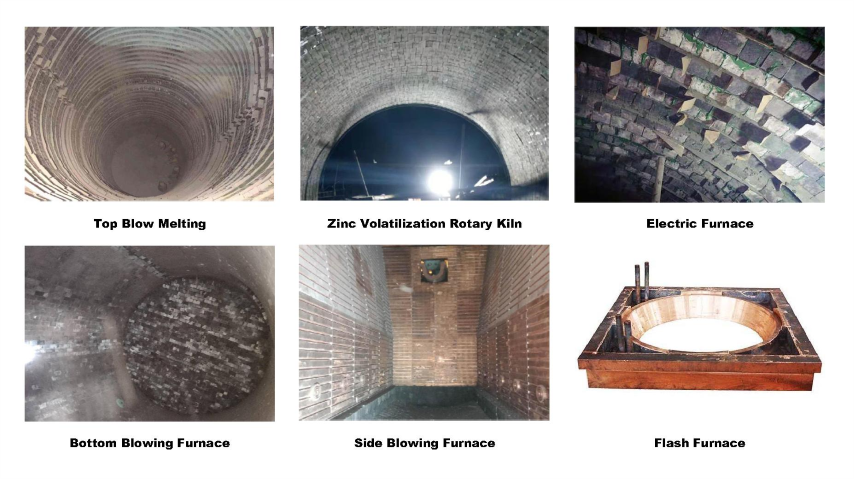

Application
Our products are widely used in non-ferrous metallurgy, ferrous metallurgy, building materials, petrochemical, electric power and other industries at home and abroad, and is exported to Iran, Thailand, India, South Africa, Peru, Indonesia, Malaysia, Congo and other countries and regions.
• Top blown bath smelting
• Bottom blowing furnace
• Side blown furnace
• Zinc volatilization rotary kiln
• Flash furnace
• Electric furnace
Our Strengths
1. Rich experience
25 years’ experience in the production of comprehensive refractories and many intellectual property rights.
2. Advanced equipment and strong technical force
Relying on scientific and technological innovation, the company has developed GW SA series spinel refractory products, and 10 new technologies have obtained national patents.
3. Spinel Refractories fill the gap in domestic market
The appearance of GW SA series spinel refractories developed and produced by our company has fundamentally solved the core problem of short life of furnace body caused by non-chemical corrosion resistance and non-liquid erosion resistance of supporting materials of user equipment.
Engineering Cases / Served Companies
JINCHUAN GROUP CO., LTD.
MINSUR S.A. PERU, LIMA
PALABORA MINING COMPANY LTD (SOUTH AFRICA)
ANHUI KEWEI METAL MATERIALS CO., LTD
LIUZHOU HUAXI GROUP CO., LTD
KILN GROUP OF ZHUZHOU METALLURGICAL MACHINERY ENGINEERING
MINING PROJECT IN THE DRC
MILUMINSUR SMELTER
MENGZI MINING AND METALLURGY CO., LTD
SMELTER OF DAYE NONFERROUS METALS CO., LTD
GENE NICKEL CO., LTD
INDONESIA TIN COMPANY
BORA COPPER, INDIA
PERUVIAN ZINC COMPANY
MALAYSIA LEAD SMELTER
