Product Description

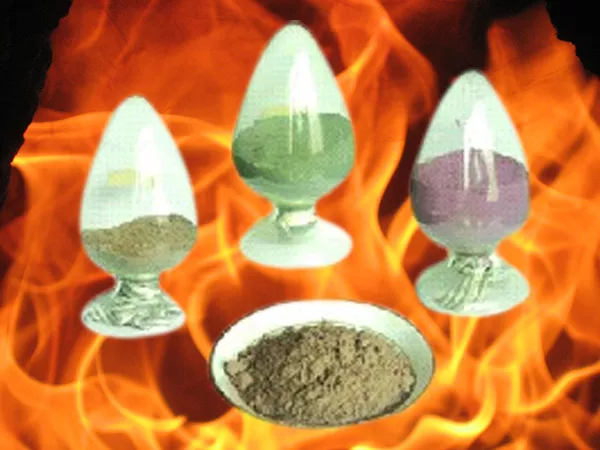

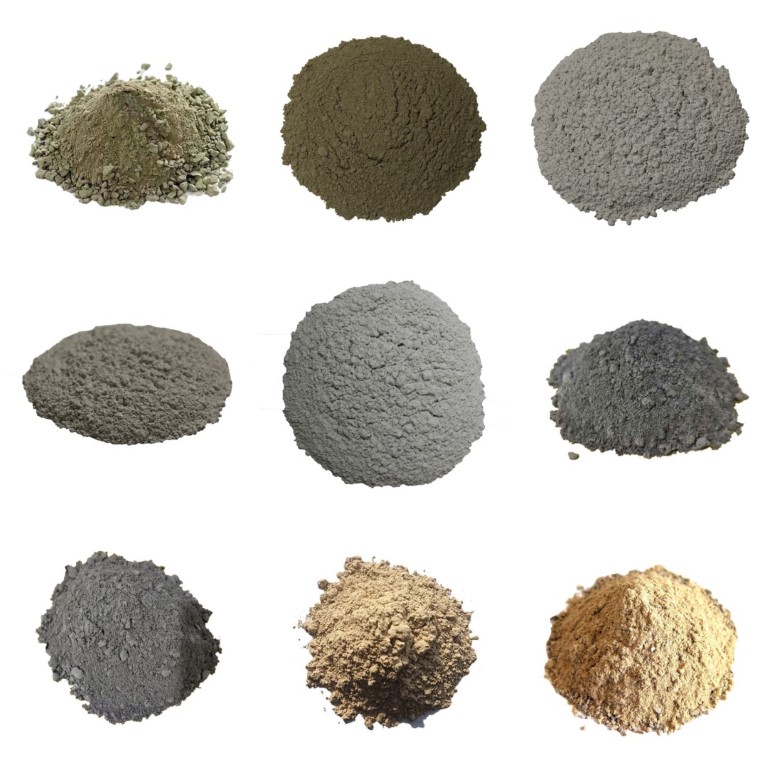

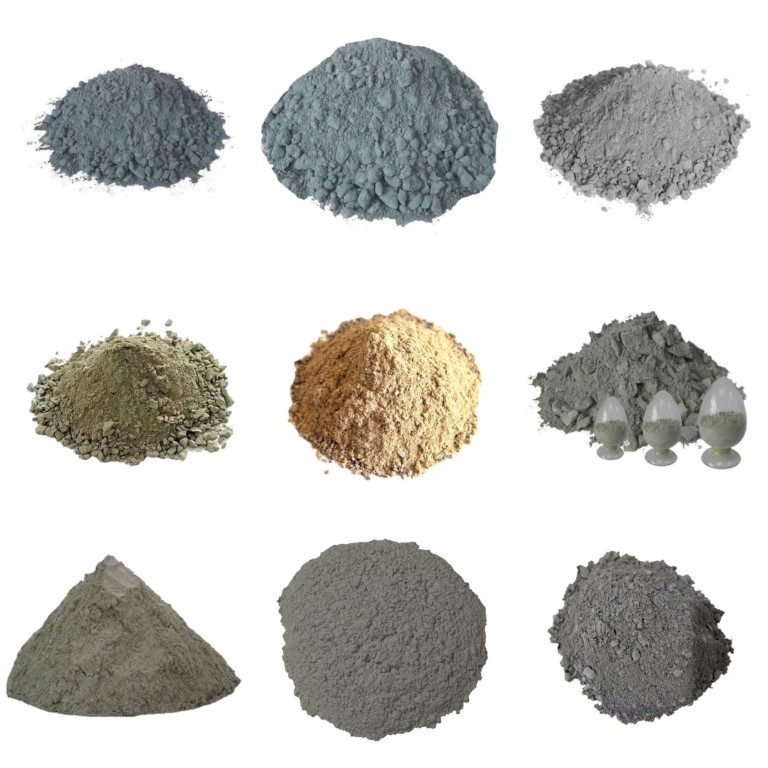

These products are specially baked unshaped refractory material consisting of various specifically sized aggregates and powders, additives and binders, and can be applied directly to the work location without presintering. They are patented products developed by our company with features of high temperature resistance, high strength, good abrasion and corrosion resistance, good ther-mal shock resistance, good gas tightness. In addition, depending on the purpose there are choices available to cater for good thermal conductivity or heat insulation. The unshaped materials are widely used in various smelting furnaces, slag cleaning fur-naces, heating furnaces, soaking furnaces, electric furnaces and steel ladles in ferrous and non-ferrous industries; glass kilns in building materials industry; synthetic ammonia gasification furnaces, carbon black reactors, refinery and catalytic cracking units in chemical industry as well as combustion chamber, back burning zone, balance flue and cyclone separator of CFB boilers.
It performs very well when applied on-site with both dry and wet methods , very easy to use as being well appreciated by our customers.
Model | GW1# | GW2# | GW3# | GW4# | GW5# | GW6# | GW7# | |
Crushing Strength | 110ºCx24h Mpa≥ | 23 | 23 | 45 | - | - | 60 | 60 |
1300ºCx3h Mpa≥ | 55 | 60 | 85 | 90 | 95 | 90 | 95 | |
Bluk Density ,g/m³≥ | 2.6 | 2.7 | 2.8 | 2.9 | 2.8 | 3.0 | 3.1 | |
Fire ResistanceºC≥ | 1930 | 1910 | 1830 | 1850 | 1850 | 1900 | 1950 | |
Linear Change after burning at1500ºC,% | -1.3 | -1.2 | +1.0 | - | +1.0 | - | - | |
Moh's Hardness≥ | 7.5 | 8 | 8.5 | 9 | 8.5 | 9 | 9 | |
Heat conductivity ,W/m-k | <0.5 | <0.6 | - | - | - | ≥2.2 | ≥2.5 | |
Features | ||||||||
Anti-corrosion | ● | ● | ● | ● | ● | ● | ● | |
Anti-abrasion | ● | ● | ● | ● | ● | |||
Heat conducting | ● | ● | ||||||
Heat Insulation | ● | ● | ● | |||||
High Strength | ● | ● | ● | ● | ● | |||
Thermal Shock Resistance | ● | ● | ● | ● | ● | |||
Penetration Resistance | ● | ● | ● | ● | ||||
Application
Our products are widely used in non-ferrous metallurgy, ferrous metallurgy, building materials, petrochemical, electric power and other industries at home and abroad, and is exported to Iran, Thailand, India, South Africa, Peru, Indonesia, Malaysia, Congo and other countries and regions.
• Top blown bath smelting
• Bottom blowing furnace
• Side blown furnace
• Zinc volatilization rotary kiln
• Flash furnace
• Electric furnace
Our Strengths
1. Rich experience
25 years’ experience in the production of comprehensive refractories and many intellectual property rights.
2. Advanced equipment and strong technical force
Relying on scientific and technological innovation, the company has developed GW SA series spinel refractory products, and 10 new technologies have obtained national patents.
3. Spinel Refractories fill the gap in domestic market
The appearance of GW SA series spinel refractories developed and produced by our company has fundamentally solved the core problem of short life of furnace body caused by non-chemical corrosion resistance and non-liquid erosion resistance of supporting materials of user equipment.
Engineering Cases / Served Companies
JINCHUAN GROUP CO., LTD.
MINSUR S.A. PERU, LIMA
PALABORA MINING COMPANY LTD (SOUTH AFRICA)
ANHUI KEWEI METAL MATERIALS CO., LTD
LIUZHOU HUAXI GROUP CO., LTD
KILN GROUP OF ZHUZHOU METALLURGICAL MACHINERY ENGINEERING
MINING PROJECT IN THE DRC
MILUMINSUR SMELTER
MENGZI MINING AND METALLURGY CO., LTD
SMELTER OF DAYE NONFERROUS METALS CO., LTD
GENE NICKEL CO., LTD
INDONESIA TIN COMPANY
BORA COPPER, INDIA
PERUVIAN ZINC COMPANY
MALAYSIA LEAD SMELTER
